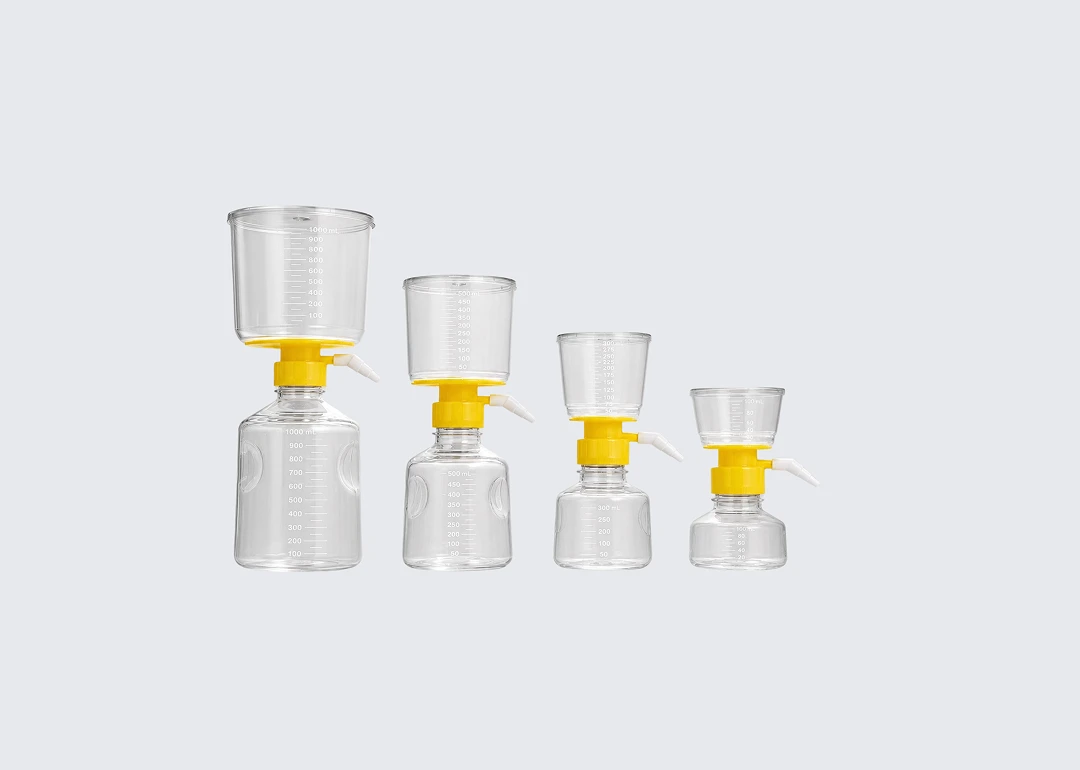

Vacuum Bottle Filters

The vacuum bottle filters provide a pressure differential through a vacuum pump and are used for large-scale filtration of tissue culture fluids and other laboratory solutions. The sample processing volume can be up to several litres, while the filtered sample can be directly stored in a sterile collection bottle. These products are ideal for sterile filtration of bases, buffers and reagents. A complete vacuum filter set is composed of an upper cup cover, an upper cup, a connector, a filter membrane and reservoir bottle.
Specifications:
  • Membrane Pore Size: 0.10μm, 0.22μm, 0.45μm
  • Membrane Type: MCE/NYLON/PVDF/CA/SFCA/PES/PES Express
  • Upper Cup Capacity: 150mL, 250mL, 500mL, 1000mL
  • Reservoir Bottle Capacity: 150mL, 250mL, 500mL, 1000mL
  • Materials:
    • Upper Filter Cup and Reservoir Bottle: Polystyrene (GPPS)
    • Yellow Connector: Acrylonitrile-butadiene-styrene copolymer (ABS)
    • White Connector: Polypropylene (PP)
Quality & Compliance
  • ISO 9001: 2015 Quality Management System
  • COA/COQ will be provided
  • Validation documents are available upon request
  • TSE/BSE certificate available
  • Conforming to USP CLASS VI
